Home > Double Eccentric Butterfly Valves >

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

Product Categories
Zhejiang Yugong Fluid Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

Brand Name : YuGong

Model Number : D372Y-PN10-CR

Certification : CE,API 607,API 609，ISO,TS,EAC

Place of Origin : China

MOQ : 1

Price : 100USD

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pcs/Mon

Delivery Time : 20 days

Packaging Details : Select the appropriate wooden crate based on the valve's design

Body Material : WCB,LCB,CF8,CF3,2205,2507,904L,etc.

Stem packing : PTFE,EPDM,WCB,SS,Graphite,Hard treatment(Stellite,Cr),Low leakage,Lip seal,etc.

Size : DN50-DN1600

Operator : Manual,Pneumatic,Hydraulic,Electric

Connection standard : ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Pressure : 150LB-2500LB

Contact Now

PN10 Wafer WCB/304 Hard-Seal Double Offset Valves for Refinery Catalysis

Product Features

The valve body is made of WCB material, which is cost-effective and facilitates on-site welding, drilling, or repair, making it suitable for direct welding to carbon steel piping. The valve disc and stem are made of 304 stainless steel, which offers excellent corrosion resistance (containing 18% Cr + 8% Ni) against atmospheric exposure, water, weak acids, weak alkalis, and food-grade media. Additionally, 304 stainless steel has moderate mechanical strength, good toughness, and is easy to machine.


Product Advantages

●Even during system startup or at low pressure, the hard seal ensures minimal leakage. Double-offset butterfly valves offer the advantages of long service life and low maintenance, with minimal mechanical wear, making them particularly suitable for frequent on-off operations or regulation. The wafer-type connection requires no additional flange pairing; it can be installed by simply clamping it between two pipe flanges, thereby saving on flanges, bolts, and associated costs.

Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

ISO 15848

Product detail

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

Application

Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

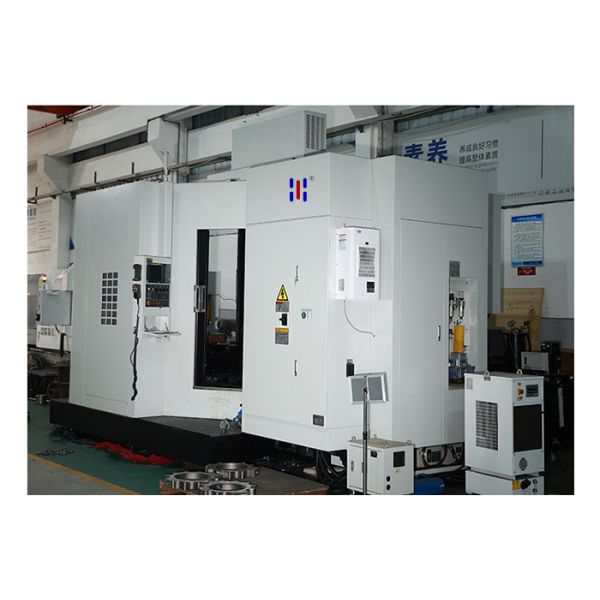

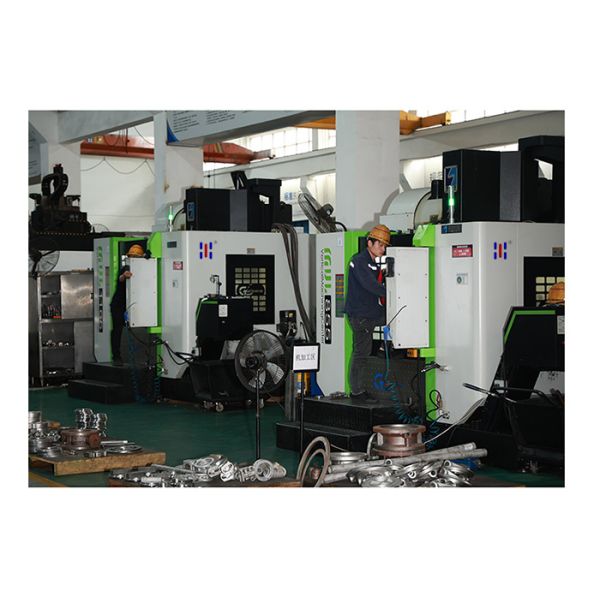

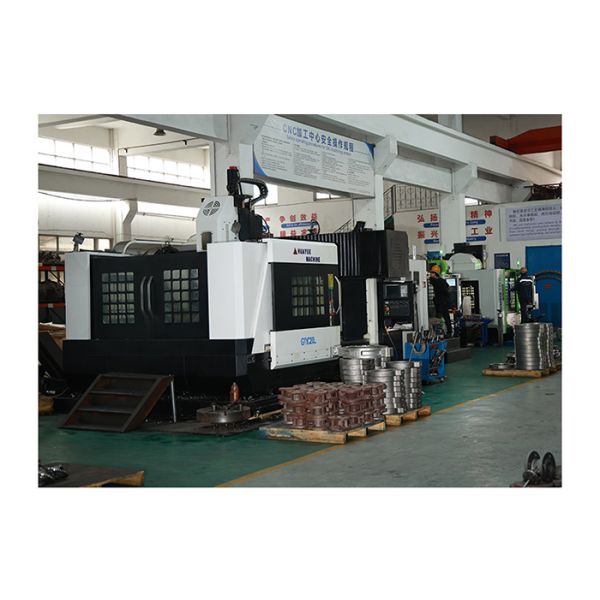

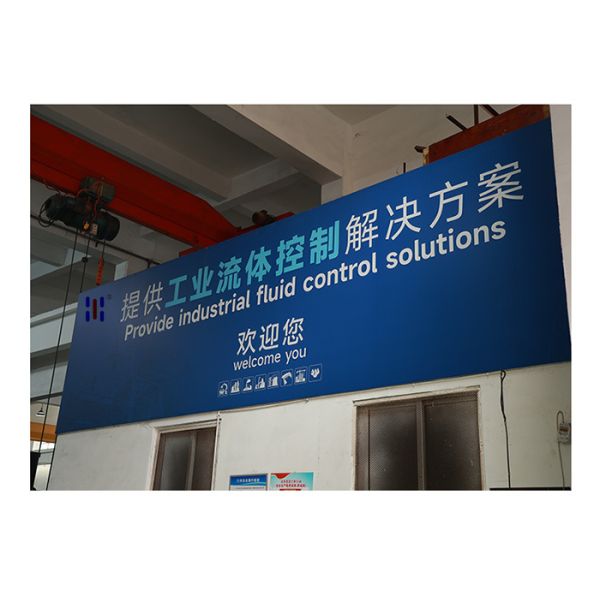

Our Workshop

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve

F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. one-year warranty toproducts.


Product Tags:

double eccentric butterfly valves api 609



refinery catalysis wafer lug valve



pn10 wafer lug valve


Wholesale PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve from china suppliers

PN10 Double Eccentric Butterfly Valves API 609 Refinery Catalysis Wafer Lug Valve Images
