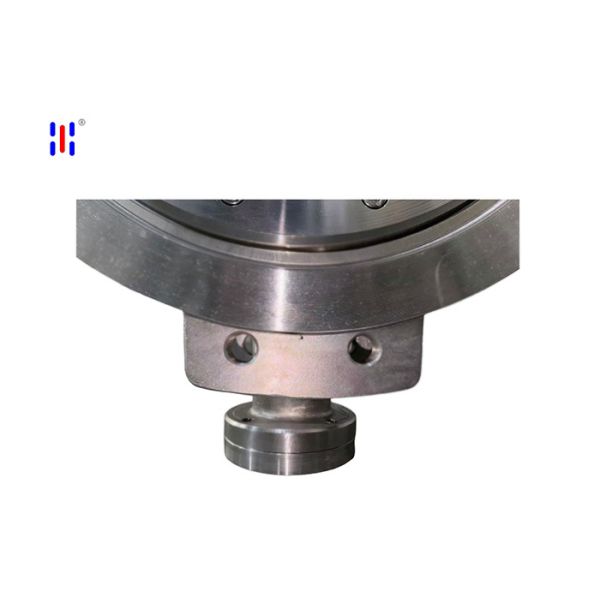

SS316 Triple Eccentric Butterfly Valves Triple Offset Pneumatic Hydraulic

316 SS Wafer PN10 for Corrosive Media Triple Offset Butterfly Valve

Product Features

Specifically designed for large-diameter pipelines carrying chlorinated water, mildly corrosive water, seawater, and chemicals. The 316 molybdenum alloy steel provides comprehensive resistance to chloride ion pitting corrosion, while the DN450 large diameter ensures smooth, high-flow passage, and the PN10 pressure rating delivers stable and reliable performance. Leveraging the long-lasting, non-degrading properties of all-metal hard seals, the valve operates purely manually without requiring power, providing reliable, zero-leakage shut-off protection for industrial pipelines.

Product Advantages

●The seal face is overlaid with Stellite alloy, featuring a hardness of HRC 65, which effectively resists erosion from sand-laden seawater, acidic crystalline particles, and impurities in circulating water, offering a service life several times longer than that of soft seals.
● The worm gear’s step-by-step transmission allows for precise adjustment of the opening angle, facilitating system flow regulation; the worm wheel’s self-locking feature ensures the disc remains stationary at any angle without movement, preventing rebound during shutdown.
● The first and second eccentricities allow the disc to lift off the seat immediately upon opening, while the third eccentric conical seal generates only the final wedging force, significantly reducing seal surface scraping and maintaining constant torque over thousands of cycles.

Design Standards

Product detail

Application

Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. one-year warranty toproducts.
